# Outline
I. Introduction
– Explanation of 2-3s 40A Brushless with UBEC Electric Speed Controller
II. Understanding Brushless Motor and ESC
– How a Brushless Motor Works
– Brushless Motor Advantages
– Understanding Electric Speed Controller
– Significance of Electric Speed Controller
III. 2-3s 40A Brushless with UBEC Electric Speed Controller for RC Airplanes
– How They Work Together
– Compatibility
– Ideal Voltage
– Choosing the Right Model
IV. 2-3s 40A Brushless with UBEC Electric Speed Controller for Skywalker Helicopter 450
– Compatibility with Skywalker Helicopter
– Ideal Voltage
V. Installation and Calibration of 2-3s 40A Brushless with UBEC Electric Speed Controller
– Installation Procedure
– Calibration Procedure
VI. Maintenance and Troubleshooting Tips
– How To Maintain Your Brushless Motor and Electric Speed Controller
– Common Problems and Solutions
VII. Conclusion
– Recap of key points
VIII. FAQs
1. What is the difference between brushless motor and brushed motor in terms of performance?
2. What is the function of UBEC in brushless motors?
3. How do I know if my brushless motor is compatible with my aircraft?
4. Can I use a 2-3s 40A Brushless with UBEC Electric Speed Controller on a large scale RC airplane?
5. How do I diagnose a faulty Electric Speed Controller?

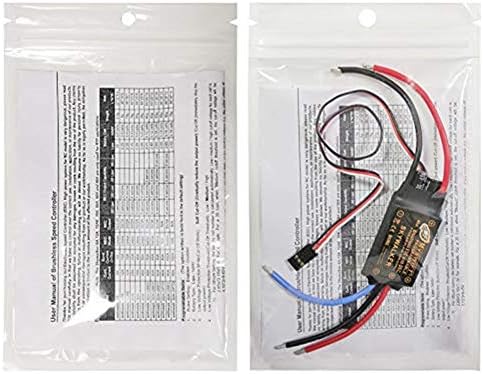

# 2-3s 40A Brushless with UBEC Electric Speed Controller for RC Airplane Skywalker Helicopter 450
2-3s 40A Brushless with UBEC Electric Speed Controller for RC airplanes is an essential component of a remote controlled (RC) aircraft. Brushless motors and Electric Speed Controllers (ESC) work together to control the speed and direction of an RC aircraft. In this article, we will explain how brushless motors and ESCs work, their advantages, and how to choose the right model to suit your needs. We will also provide guidance on installation, calibration, maintenance, and troubleshooting tips.
## Understanding Brushless Motor and ESC
A brushless motor is an electric motor that does not have brushes. In conventional electric motors, brushes are used to transfer electrical current from the battery to the motor’s rotating armature. The brushless motor, on the other hand, uses electronic commutation to power the motor. This process is more efficient since there is no friction between the brushes and the commutator. The brushless motor is also more reliable due to fewer moving parts, simpler construction, and lower operating temperatures.
Similarly, an Electric Speed Controller (ESC) is an electronic device that regulates the speed of an electric motor. The ESC interprets signals from the remote control transmitter and adjusts the DC voltage supplied to the motor. By controlling the voltage supply, the ESC can control the speed, direction, and braking of the motor. It also acts as a power regulator and protects the motor from overloading.
## 2-3s 40A Brushless with UBEC Electric Speed Controller for RC Airplanes
2-3s 40A Brushless with UBEC Electric Speed Controller is designed for small to medium-sized RC airplanes. UBEC, or Universal Battery Elimination Circuit, is a voltage regulator that provides a stable 5V output to power the receiver and servos. The UBEC is especially useful when the ESC is using a high voltage battery that exceeds the operating voltage of the receiver and servos.
To choose the right brushless motor and ESC for your RC airplane, you need to consider the motor’s specifications, the aircraft’s weight, and the desired performance. The brushless motor’s KV rating, or revolutions per minute (RPM) per volt, determines the motor’s speed, torque, and power. The ESC’s amperage rating should be higher than the motor’s amperage rating to prevent overload.
Choosing the right model and voltage for your aircraft is also important. A higher KV rating means higher speeds, but a lower torque. The aircraft’s weight, wing loading, and wing type can also affect the choice of motor and ESC. For example, a heavier aircraft may require a higher voltage or more powerful motor.
## 2-3s 40A Brushless with UBEC Electric Speed Controller for Skywalker Helicopter 450
The Skywalker Helicopter 450 is a popular RC helicopter that requires a 2-3s 40A Brushless with UBEC Electric Speed Controller to operate. The brushless motor’s KV rating, typically around 1000KV, provides high torque and power for the helicopter’s rotor system. The ESC’s amperage rating, typically around 40A, controls the motor’s speed and direction.
The Skywalker Helicopter 450 requires a 2-3s Lithium Polymer (LiPo) battery to power the brushless motor and the UBEC. The UBEC’s 5V output stabilizes the receiver and servos, ensuring smooth and responsive flight control. The brushless motor and ESC are typically sold as a kit, making installation and calibration easier.
## Installation and Calibration of 2-3s 40A Brushless with UBEC Electric Speed Controller
The installation process of the 2-3s 40A Brushless with UBEC Electric Speed Controller for your RC airplane or helicopter may differ based on the model and manufacturer. However, the following general steps may apply:
1. Disconnect the battery and remove the old motor and ESC.
2. Mount the new motor onto the aircraft, ensuring proper alignment and clearance.
3. Connect the motor wires to the ESC, following the manufacturer’s instructions.
4. Mount the ESC and UBEC onto the aircraft, ensuring proper positioning and cooling.
5. Connect the ESC and UBEC wires to the battery, receiver, and servos, following the manufacturer’s instructions.
6. Verify the wiring and make any necessary adjustments.
The calibration process is also essential to ensure the motor and ESC are compatible and operating correctly. Calibration typically involves setting the throttle range, reversing the motor direction, and adjusting the timing and soft-start settings. Follow the manufacturer’s instructions carefully and test the motor and ESC before flying the aircraft.
## Maintenance and Troubleshooting Tips
Proper maintenance of your brushless motor and Electric Speed Controller can prolong their lifespan and ensure optimal performance. Keep them clean, check for loose screws or damaged wires, and lubricate the bearings regularly. Avoid overloading the motor or ESC, and use a low-voltage alarm to prevent over-discharging the battery.
If you experience any problems with the brushless motor or ESC, here are some common issues and solutions:
– Motor does not start or runs inconsistently: check the wiring, connectors, and motor bearings. Adjust the calibration settings.
– Motor overheats or burns out: check the amperage rating, propeller size, or voltage. Reduce the load or use a higher rated motor or ESC.
– ESC cuts off or makes beeping sounds: check the battery voltage, throttle range, or overheating. Replace or recalibrate the ESC.
## Conclusion
A 2-3s 40A Brushless with UBEC Electric Speed Controller is a vital component of an RC aircraft that enhances its speed, efficiency, and control. Understanding how the brushless motor and ESC work together, choosing the right model, installation and calibration procedure, and maintenance and troubleshooting tips can help you achieve the best performance from your RC aircraft.
## FAQs
1. What is the difference between brushless motor and brushed motor in terms of performance?
Brushless motors are more efficient, reliable, and produce less noise and heat than brushed motors. They have a higher power-to-weight ratio and can operate at higher speeds and acceleration.
2. What is the function of UBEC in brushless motors?
The UBEC provides a stable output voltage to power the receiver and servos independently of the motor’s high voltage battery.
3. How do I know if my brushless motor is compatible with my aircraft?
Check the motor’s KV rating, amperage rating, voltage, and aircraft weight, wing loading, and wing type. Choose a motor and ESC with compatible specifications.
4. Can I use a 2-3s 40A Brushless with UBEC Electric Speed Controller on a large scale RC airplane?
No, a larger aircraft may require a higher rated motor and ESC.
5. How do I diagnose a faulty Electric Speed Controller?
Check for overheating, cut-offs, beeping sounds, or inconsistent RPM. Verify the wiring and recalibrate the ESC.
